AFB Testing System
The Sandwich Vessel Concentration Technology provides an innovative concentration method with high efficiency, safety, low cost and improved positive rate, which collects bacteria through membrane filtration and adsorption process in combination with Autor Stainer. The membrane concentrated with bacteria can be directly dyed and examined by microscope.
The AFB Testing System adopting Sandwich Vessel Concentration Technology includes Interlayer Acid-fast Bacilli Test Kits and Auto Stainers, is intended to provide assist for clinical diagnosis.
Note: Products not for sale or use in the United States. For export only.
Auto Stainer
The Auto Stainer uses the filtering principle, which is suitable for slide making and staining for the specimens of sputum, pleural effusion, urine, cerebrospinal fluid, cervical cancer cells and etc. The Auto Stainer is in a close system, being used in combination with the Sandwich Vessel Concentration technology.
The Auto Stainer provides semi-automated (MS-1, MS-5) and automated (MS-AUTO20) staining function and must be operated by professionals or trained laboratorians.
The semi-automated Auto Stainer provides vacuum and heating function. The automated Auto Stainer provides vacuum, heating and reagent adding function. By working with the kits that uses Sandwich Vessel technology, the sample can be concentrated and stained on a membrane to improve detecting rate.
| Ordering information | ||
| Product Description | Specimen/Model | Cat. No. |
| Auto Stainer | MS-1 | VC050201-CE |
| Auto Stainer | MS-5 | VC050202-CE |
| Auto Stainer | MS-Auto20 | VC050203-CE |
Auto Stainer MS-1
Auto Stainer MS-1 is suitable for laboratories with less than 10 samples per day.
Figures:
Safe: Reduce bio-risk
Portable: Mini size
Smart: Automatic control of staining time
Specifications:
Throughput: 1 specimen per test
Vision area: 3.14 square centimeters
Heating: RT~65°C±1°C
Dimension: 265x185x125 (L*W*H), Unit: mm. 1.35 Kg
Power supply: AC220V, 50Hz/60Hz, 45W(Standard)

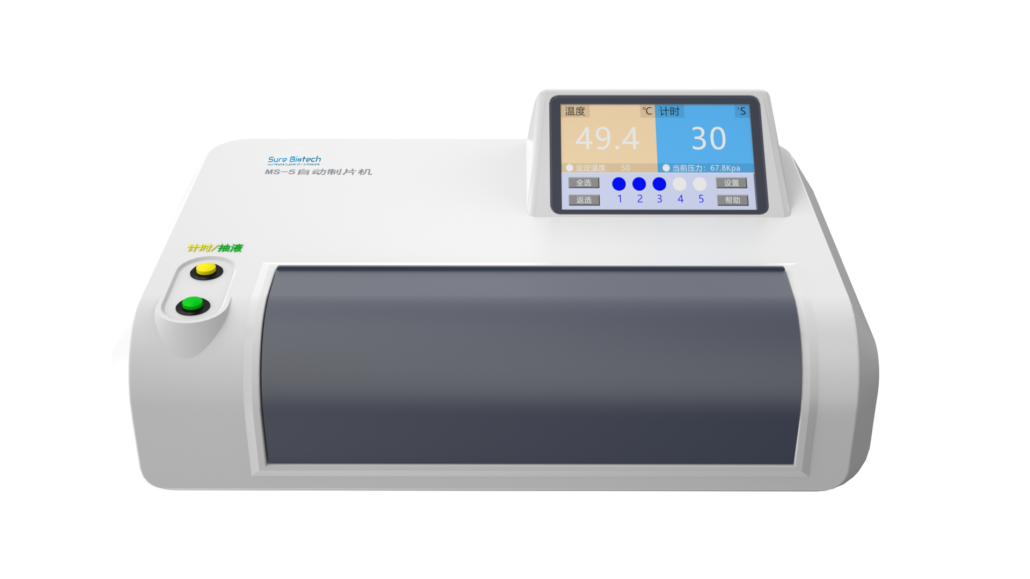

Auto Stainer MS-5
Auto Stainer MS-5 is suitable for laboratories with less than 40 samples per day.
Figures:
Safe: Reduce bio-risk
Portable: Mini size
Smart: Automatic control of staining time
Specifications:
Throughput: 5 specimens per test
Vision area: 3.14 square centimeters
Heating: RT~65°C±1°C
Dimension: 430x260x180 (L*W*H), Unit: mm. 6.3 Kg
Power supply: AC220V, 50Hz/60Hz, 200W(Standard)

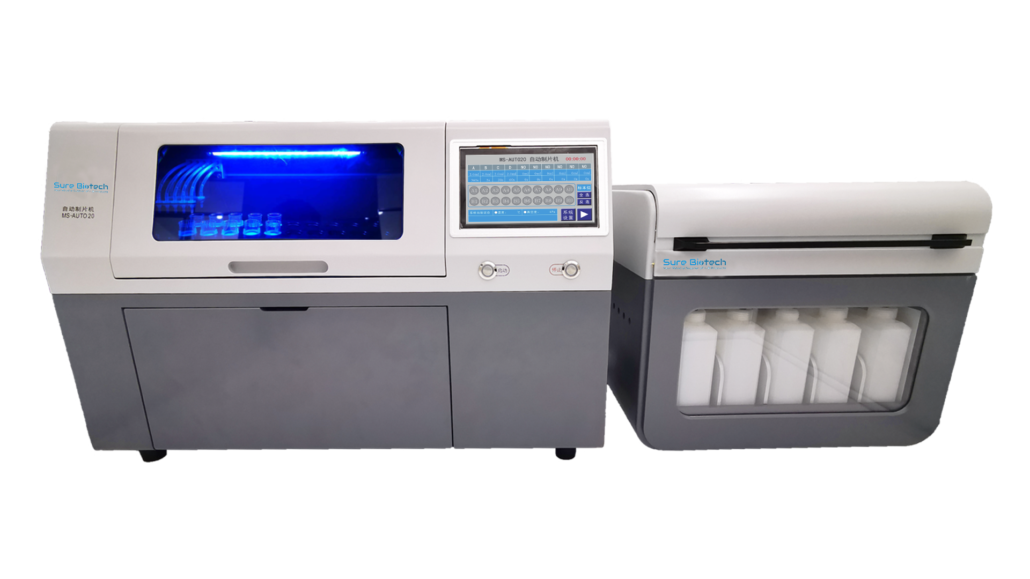

Auto Stainer MS-AUTO20
Auto Stainer MS-AUTO20 is suitable for laboratories with more than 40 samples per day.
Figures:
Automatic: Reduce labor cost
Safe: Reduce bio-risk
Reliable: Reduce human error
Specifications:
Throughput: 20 specimens per test
Staining speed: 60~80 test/hour
Vision area: 3.14 square centimeters
Heating: RT~65°C
Reagent bottle capacity: ≥500mL
Dimension: main body: 680x460x450 (L*W*H), Unit: mm.
Reagent room: 422x387x376 (L*W*H), Unit: mm.
Power supply: AC220V, 50Hz/60Hz, 600W(Standard)
Interlayer Acid-Fast Bacilli Test Kit
The Interlayer Acid-Fast Bacilli Test Kit incorporated with Concentrated Sandwich Smear Method, is intended for use in the screening of acid-fast bacilli present in various body fluid specimens.
The Concentrated Sandwich Smear Method begins with the collection of patient’s sputum sample or other body fluid specimens from clinical sites. Rather than being directly smeared on a microscope slide, the sputum sample or other body fluid specimens is treated with Specimen Digestive Solution provided in the Interlayer Acid-Fast Bacilli Test Kit. The treated sputum sample or other body fluid specimens is then continued with staining procedures on MS-1/ MS-5 Semi-Automated or MS-AUTO20 Fully Automated Stainer.
- Sample Type: Urine/Cervical sample/Cerebrospinal fluid/ Pleural effusion/Sputum
- Component: Sandwich Vessel, Digestive Solution, Acid-fast staining solutions, Washing Solution, Coverslip, Absorbent paper, Oil-based Optical medium, Dropper, Slide
- Shelf life: 24 months stored at room temperature
| Ordering information | |||
| Product Description | Specimen/Model | Cat. No. | Tests/ kit |
| Interlayer Acid-Fast Bacilli Test Kit (Fluorescence Auramine O) | sputum or body fluid specimens | VC060101-CE | 100 |
| Interlayer Acid-Fast Bacilli Test Kit (Ziehl Neelsen) | sputum or body fluid specimens | VC060102-CE | 100 |
